Contact matrix sensor dart machines Löwen SM92, SM94, HB8 etc. and identical ones

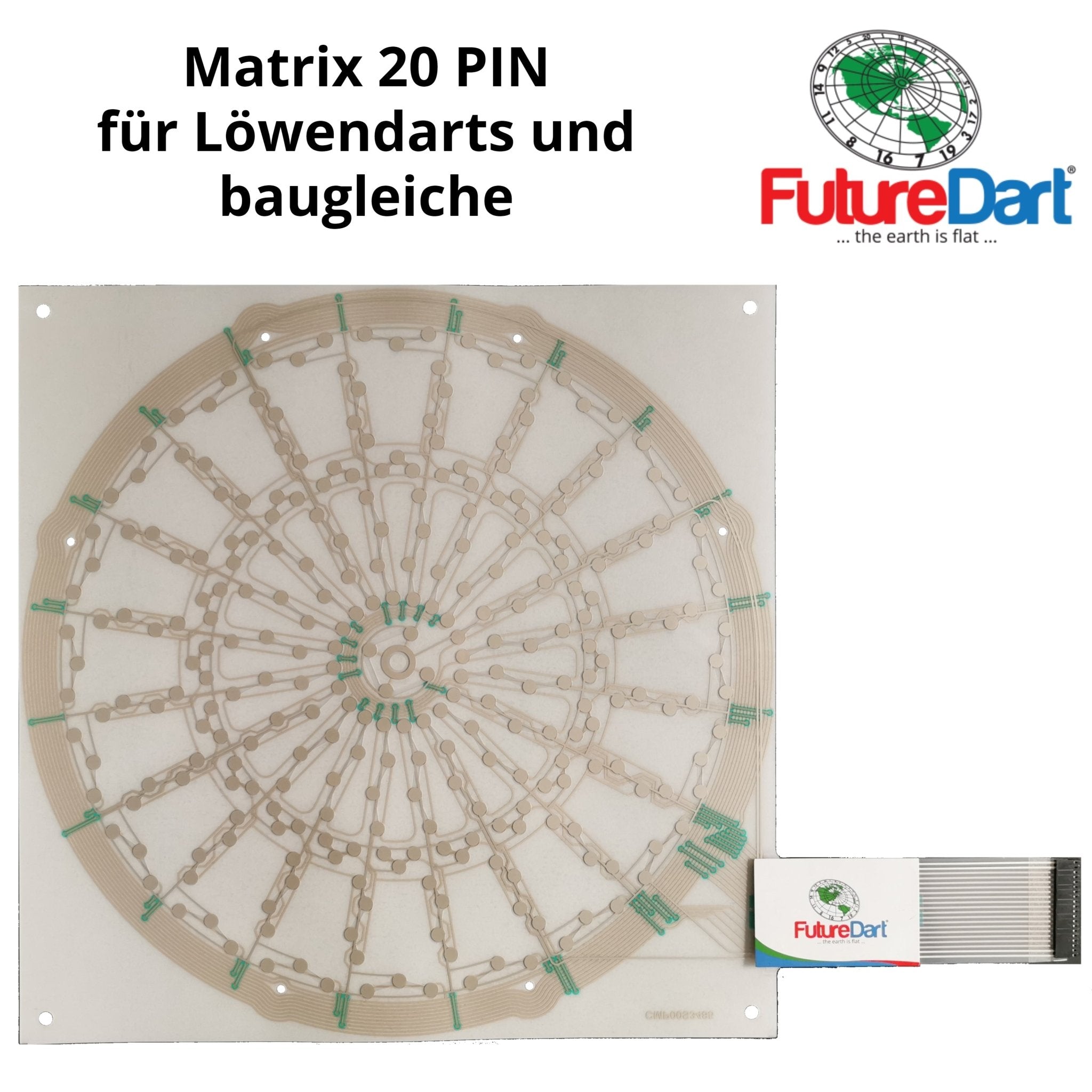

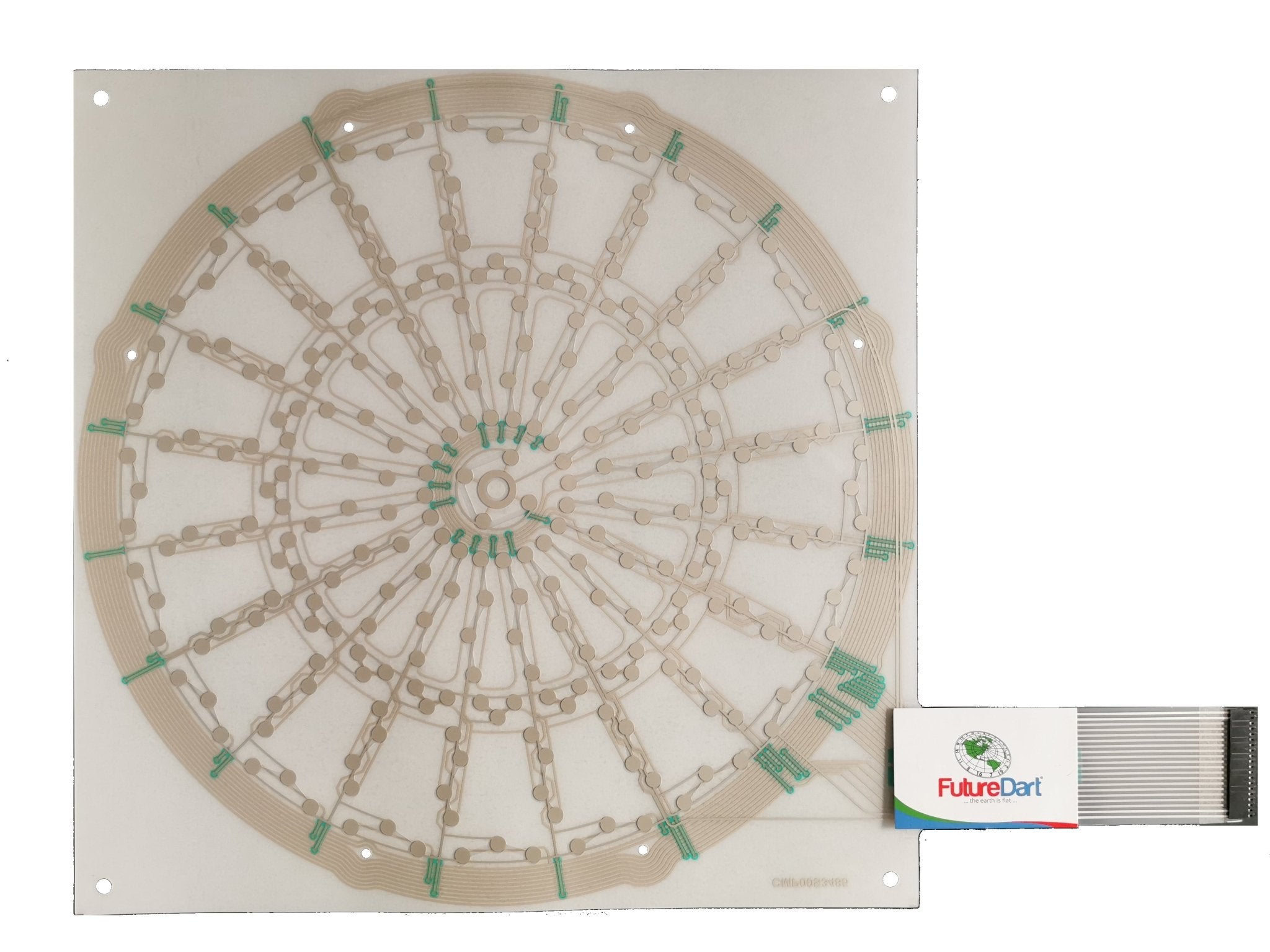

Contact Matrix - Switch Matrix

Sensor matrix for Löwen dart machines and identical ones suitable for:

Löwen Dart HB10, HB9, HB8, Cougar, Löwen Dart 2000, Vision Dart, SM92/94, FM90, Royal 86 with/without cricket, Idea Dart

Also suitable for identical devices such as:

Fun Blue Profi Daryde Dart, Compumatic Dart (does not fit Mini Dart 350), Windart (in lion design), Radical Dart, Wik western Party Dart, Cobra Tour Sport Dart, Kings Darts, Amatic Team Master Dart, Euro Dart, Magic Dart 3

Does not fit Quadro dart machines

The matrix has a 20-pin connector (2+16+2) and is self-adhesive.

Simply remove the old defective matrix from the wooden support.

Remove the new matrix protective film and stick it on.
